Name: Overhead Transmission Hydraulic Max Tension2x70/1x140kN Cable Tensioner
Brand: Wuxi Hanyu power equipment co.,ltd
SKU: TY2X70IV
Price: 95.00 USD
Availability: InStock

Adedi:	1set
Price:	USD94,000-97,000/set
Standart ambalaj:	konteyner
Teslim süresi:	15-35 gün
Ödeme yöntemi:	L/C, T/T
Tedarik Kapasitesi:	10 set/ay

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri

ÇİN

Marka adı

HANYU

Sertifika

ISO9001

Model numarası

TY2X70IV

Tip:

Hidrolik Kablo Gergisi

Dizel:

77kw (103hp)

Maksimum iletken çapı:

40mm

Elektrik sistemi:

24V

Oluk numarası:

2x8

Maksimum aralıklı gerilim:

2x70/1x140kN

Vurgulamak:

hydraulic cable tensioner for transmission lines

overhead transmission cable tensioner 70kN

high-tension cable tensioner with hydraulic system

Ürün Tanımı

Overhead Transmission Hydraulic 2x70/1x140kN Cable Tensioner

Performance

Max intermittent tension: 2x70/1x140kN
Max continuous tension: 2x65/1x130kN
Max reverse pulling force: 2*60kN/1*120kN
Max speed: 5km/h
Max reverse pulling speed: 5km/h
Speed at max tension: 2.5km/h
Pull at max speed: 2x25/1x50kN

Characteristics

Max conductor diameter: 40mm
Bull-wheel diameter: 1500mm
Groove number: 2x8
Overall dimension (length*width*height):5500*2280*2700mm
Total weight: 12000kg

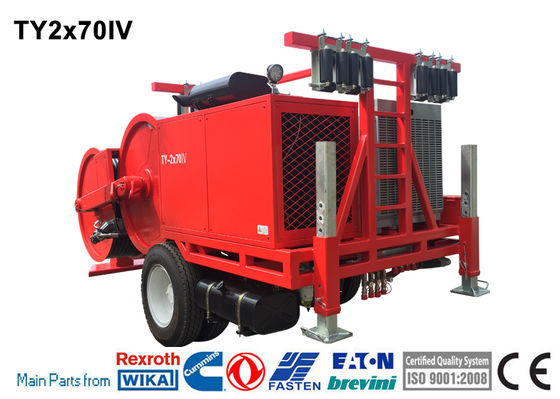

TY2x70IV Hydraulic Tensioner

The machine allows for the tension stringing of four-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains;
Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Engine

Diesel: 77kw(103hp)
Electrical system: 24V
Cooling system: water

Main configuration

Speed reducer: German Rexroth / Italy Bonfiglioli
Hydraulic pump: German Rexroth/Dnish Danfoss
Main hydraulic valves: USA Sun / Italy ATOS
Engine: Cummins
Main motor:German Rexroth/French Leduc

Configuration

2 negative self-acting hydraulic brakes
2 digital meter and speed counters
Grounding connection point
Hydraulic front stabilizer
2 hydraulic dynamometers
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor

Hydraulic Transmission

The machine can realize step less speed.
The machine is provided with tension presetting system.

Additional Devices

Air brake system for the trailer (extra charge)
Digital Speed and meter counter
Lighting system for the trailer
Swivel guide rope roller
4 hydraulic rope/conductor clamp (extra charge)

Overhead Transmission Hydraulic Max Tension2x70/1x140kN Cable Tensioner 0
